CUSTOM CHANNEL LETTERS
Custom Channel Letter Signs Built to Approved Drawings
Specify illumination, face and return materials, letter depth, mounting, cable exits and destination voltage before fabrication.
- Front-lit, halo-lit, dual-lit and open-face options
- Direct, raceway, backer-panel and stand-off mounting
- One-set prototype and repeat-production support
CONSTRUCTION
Letter Construction Starts With the Site Interface

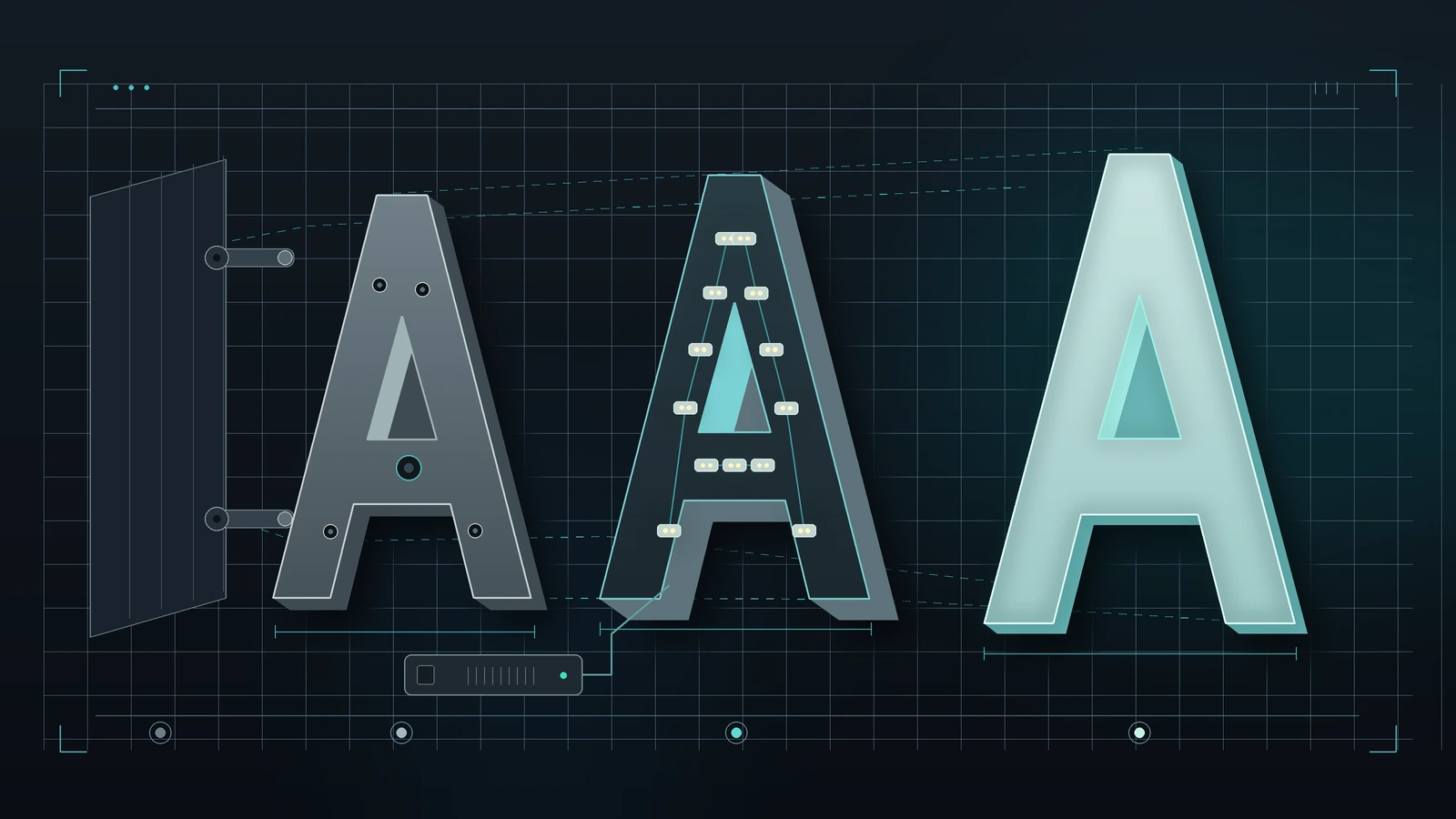

Artwork defines the visual shape, but the production drawing also needs to resolve return depth, face retention, mounting points, cable routes, power-supply access and the installation surface.

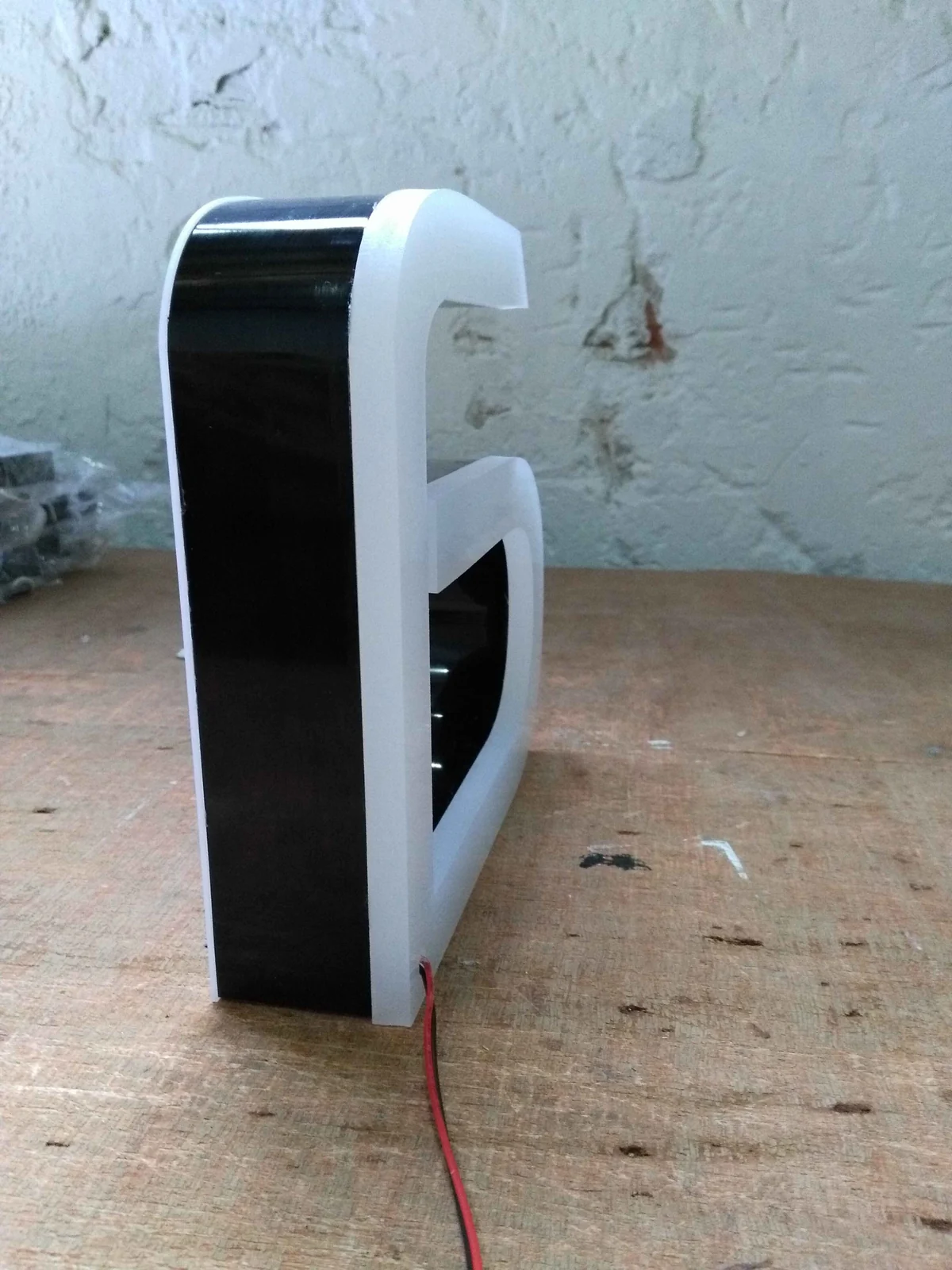

- Aluminum or stainless-steel returns and backs

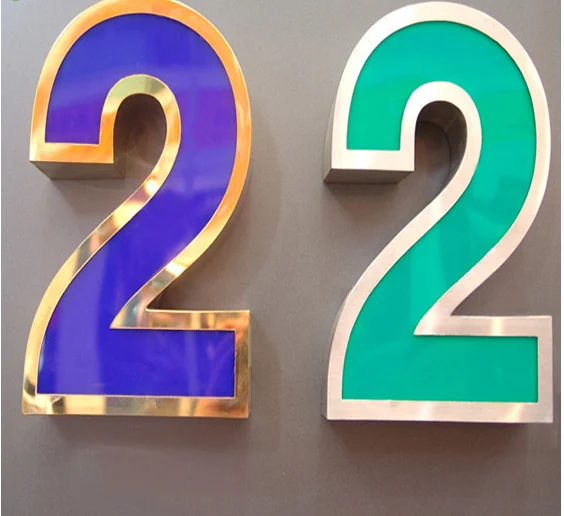

- Acrylic faces, trim-cap or trimless details
- 12V or 24V LED layouts matched to stroke width
- Installation patterns, rails, raceways or backer panels
CONFIGURATION OPTIONS
Channel Letter Configurations for Different Viewing Effects
Choose the lighting direction and structure that fit the brand intent, viewing distance and installation conditions.
COMMERCIAL APPLICATIONS
Where This Sign System Is Commonly Specified
Use the application conditions—not only the product name—to define visibility, finish, mounting and service requirements.
PRODUCTION CONTROL
Drawing Review, Fabrication, Testing and Packing
The approved drawing remains the manufacturing reference from material processing through functional review and shipment-ready packing.
Drawing & Pattern
Confirm letter outlines, returns, mounting points, cable exits and installation template.

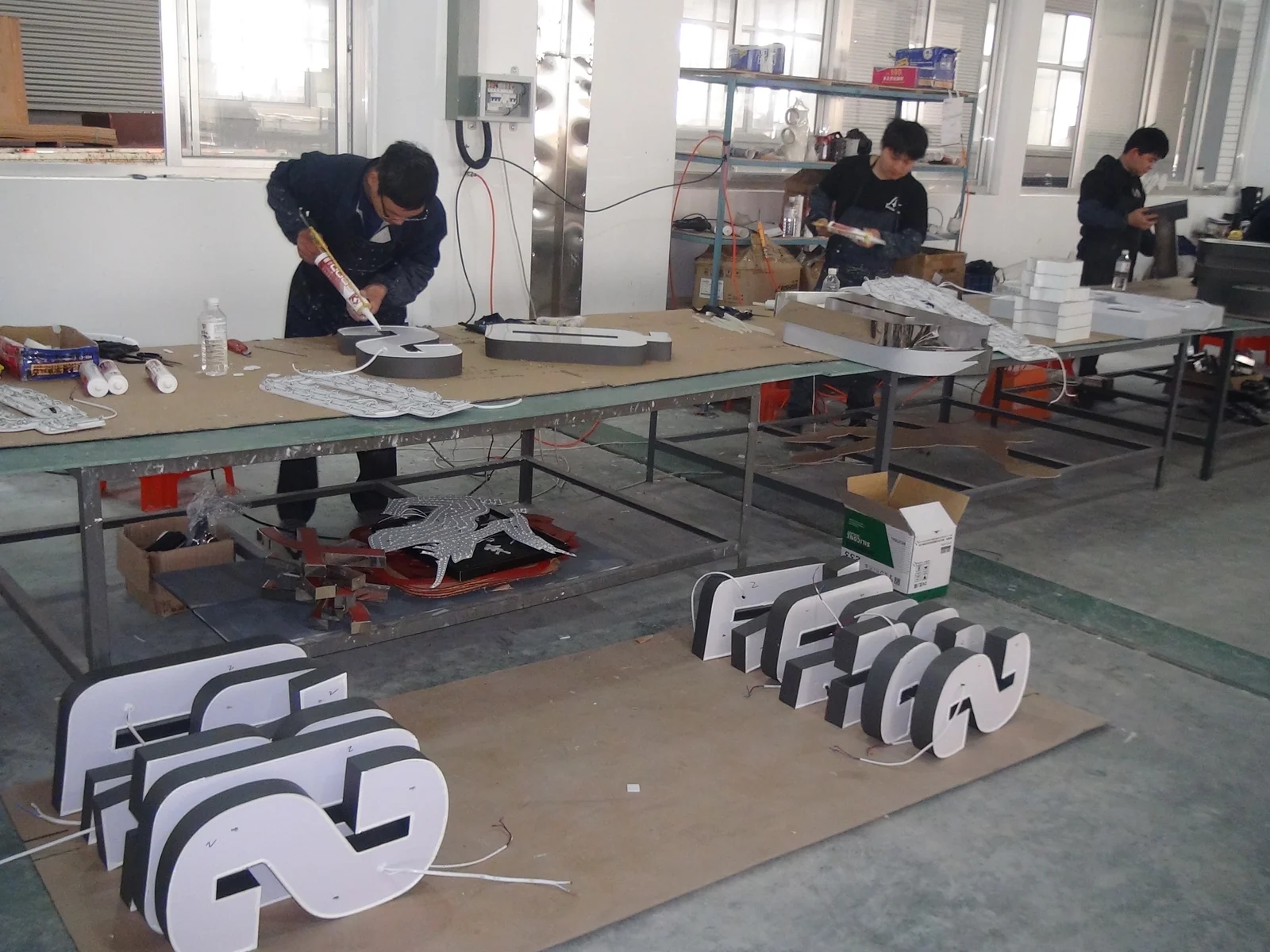

Fabrication & Assembly

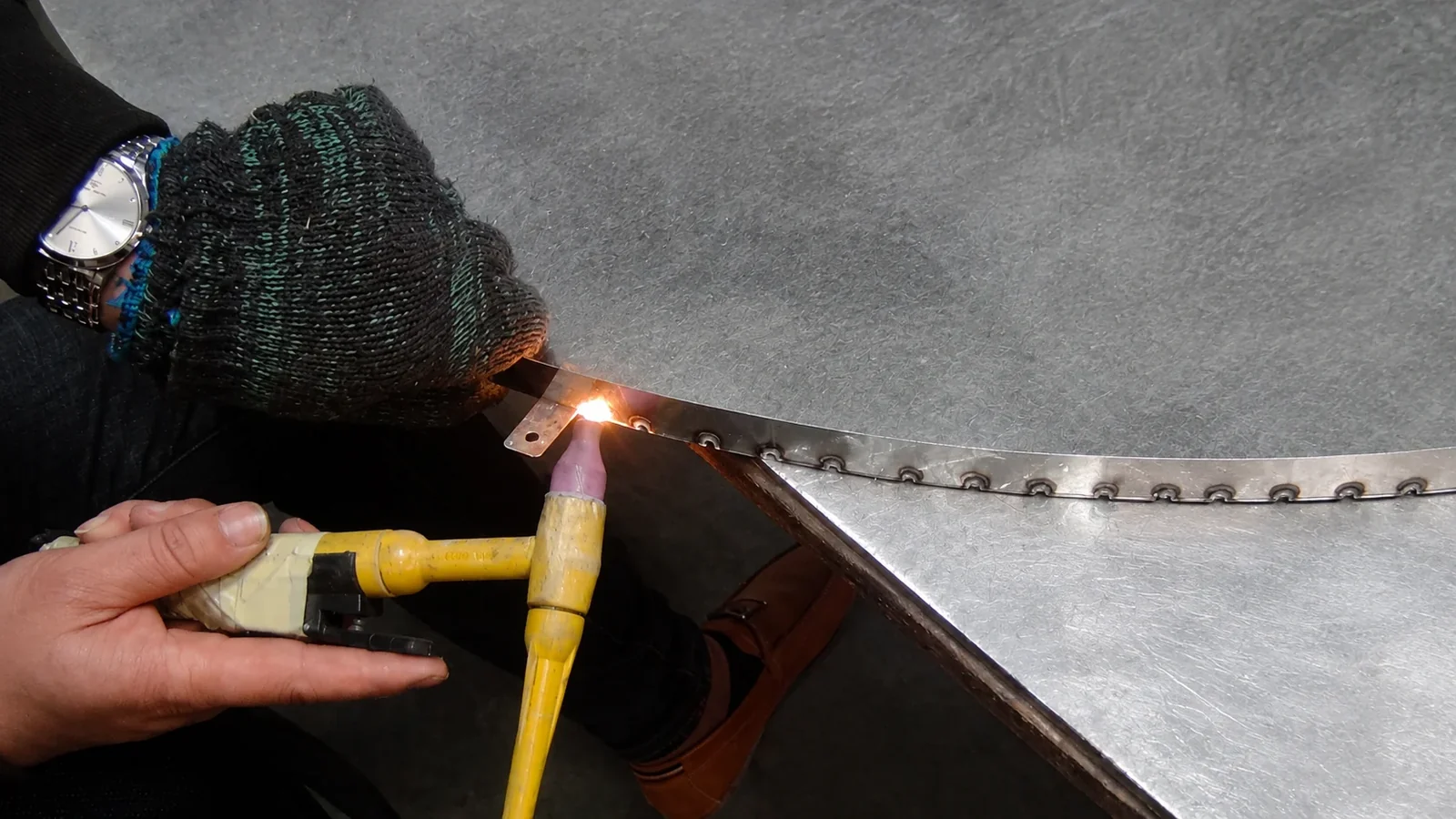

Process faces, returns and backs; install LEDs, wiring and power-supply references.
Illumination & Packing
Check dimensions, finish and light output; label letters and hardware for shipment.
SPECIFICATION MATRIX
Project Variables Confirmed Before Production
No fixed configuration is assumed. Materials, lighting, mounting, voltage and environmental construction are confirmed against the actual artwork and site requirements.
| Material | Custom / Project Based — Aluminum, stainless steel, acrylic and project-specific face materials |
|---|---|
| Lighting | Custom / Project Based — 12V or 24V modules; white, color or RGB options by design |
| Mounting | Custom / Project Based — Direct studs, raceway, backer panel, rails or stand-off mounting |
| Voltage | Custom / Project Based — matched to the destination input and selected electrical components |
| Environment | Custom / Project Based — indoor or outdoor exposure, sealing, drainage and service access confirmed before production |
PRODUCT FAQ
Questions About Channel Letter Signs
Use these answers to prepare drawings and installation information before requesting a quotation.
Which channel letter lighting style should I choose?

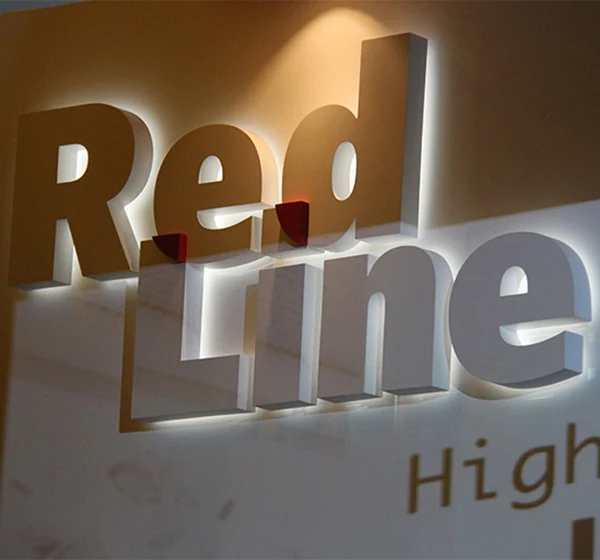

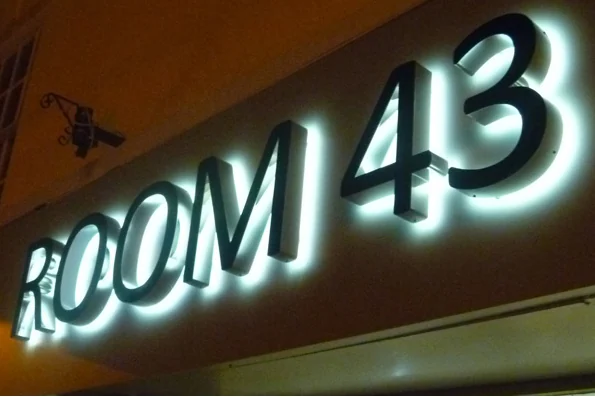

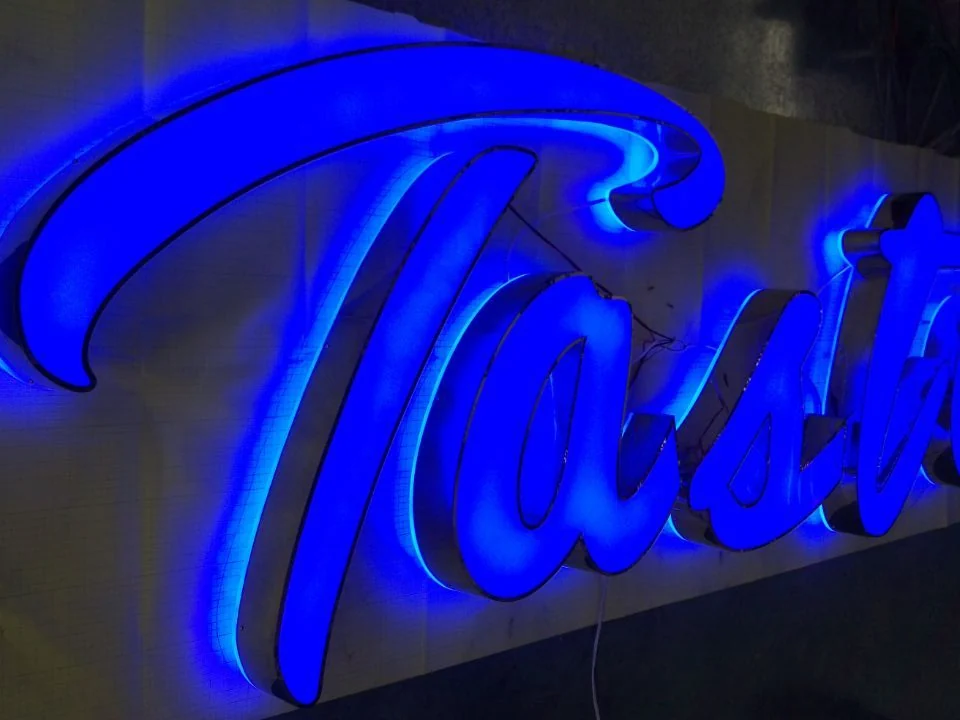

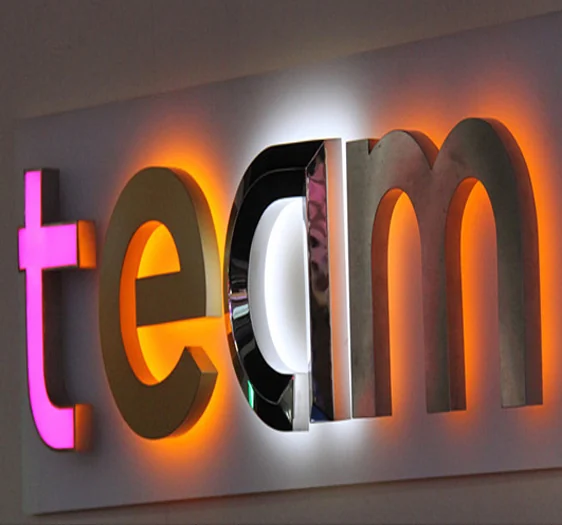

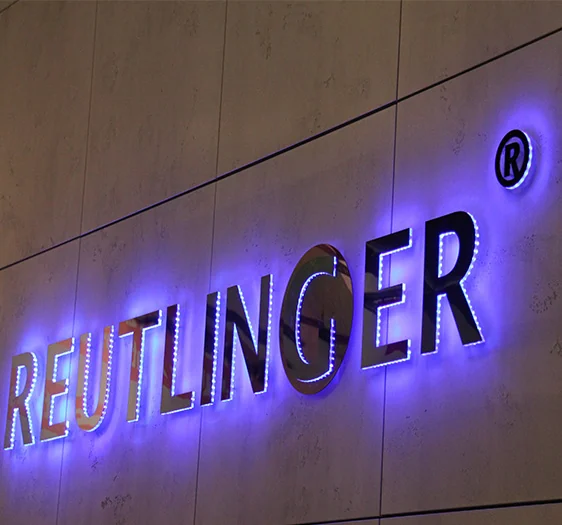

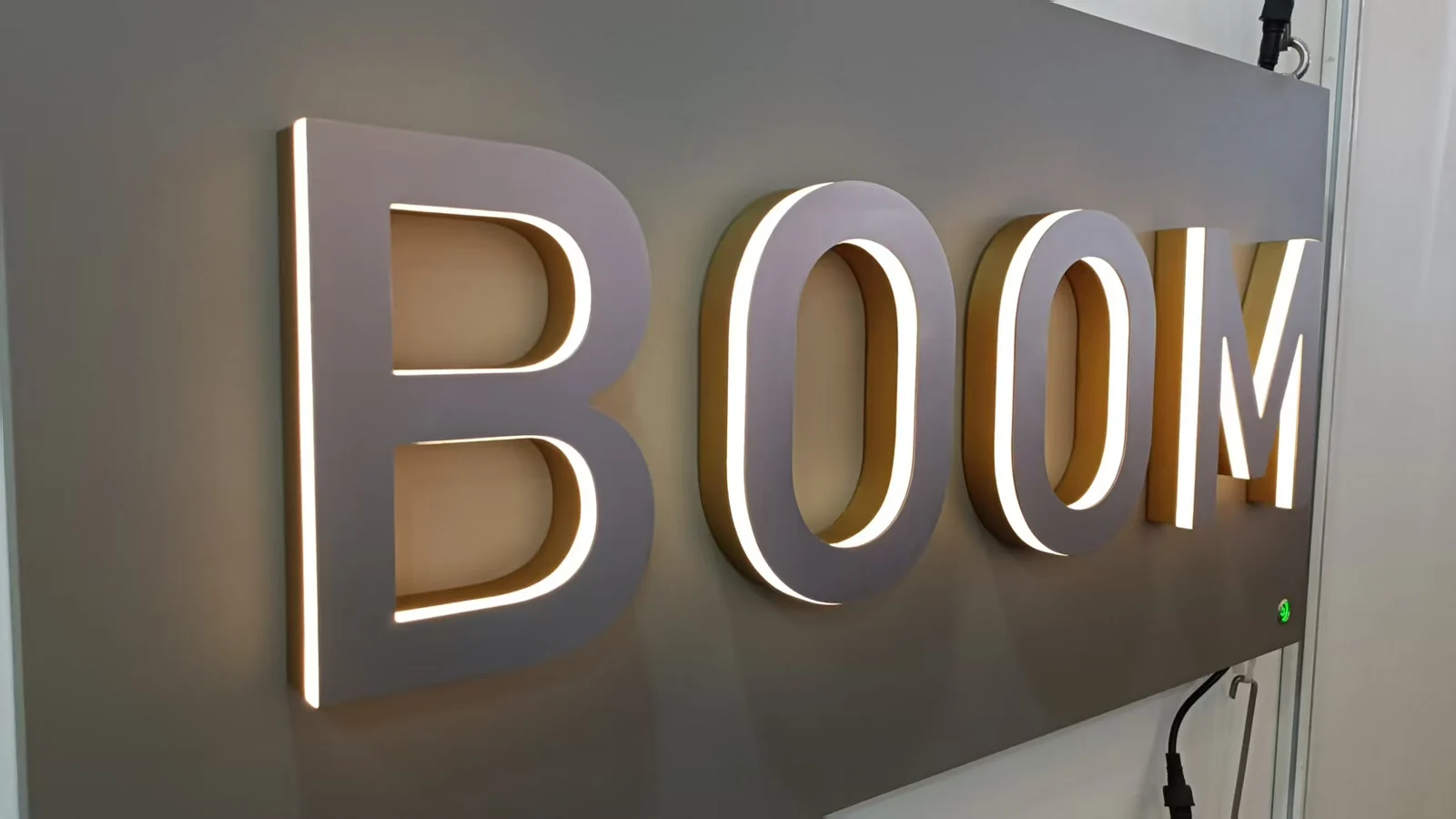

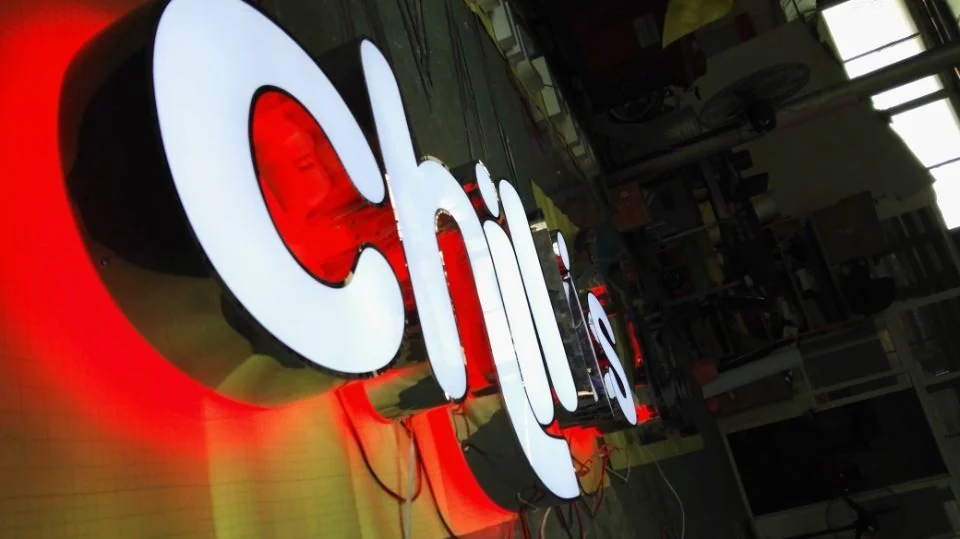

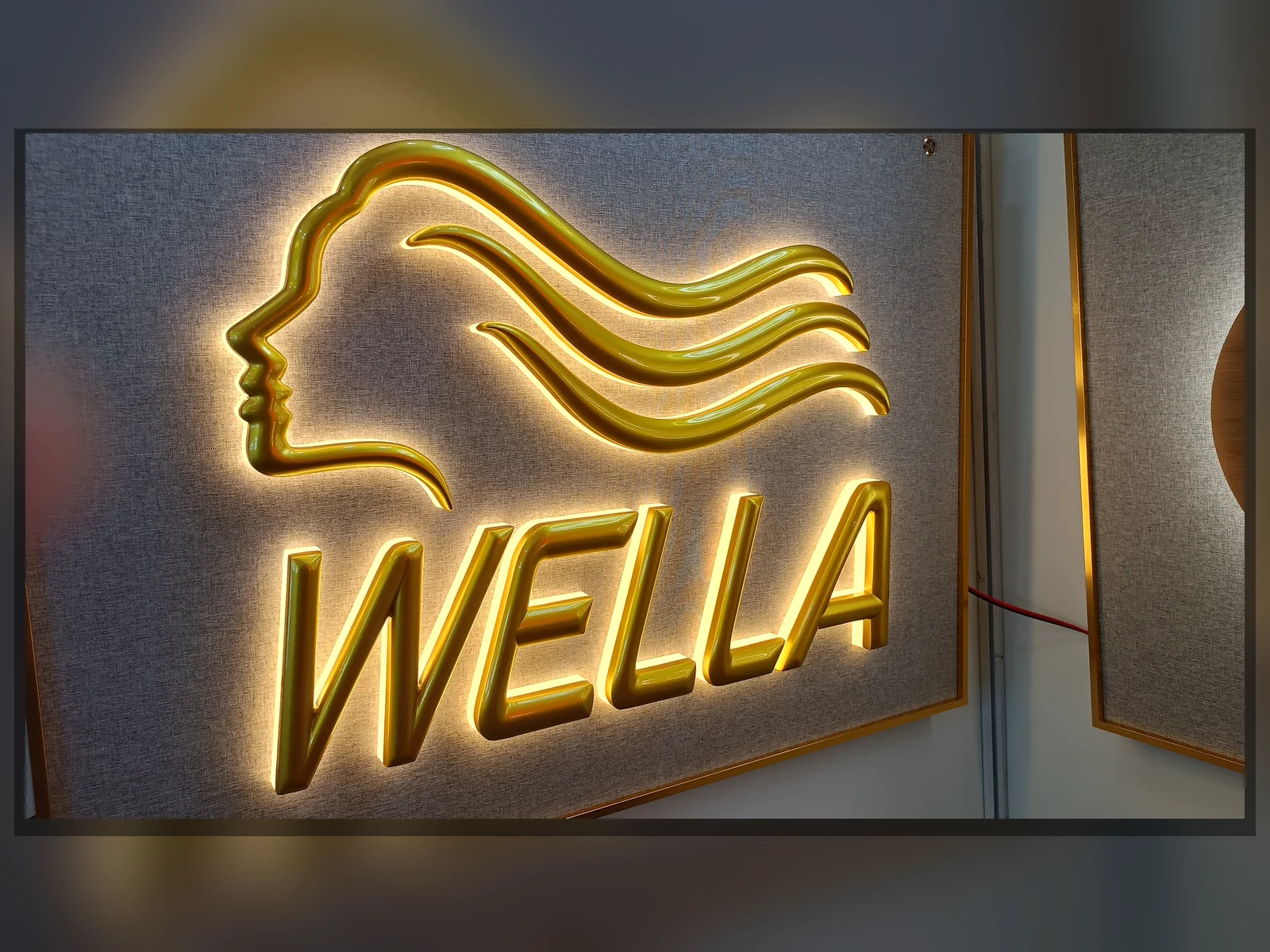

Front-lit letters maximize face visibility, halo-lit letters emphasize reflected light, dual-lit letters combine both effects, and open-face letters use visible bulbs or LEDs. Site surface, viewing distance and local requirements should be reviewed before selection.
Can channel letters be supplied on a raceway or backer panel?
Yes. Raceway, backer-panel, rail and direct-mount options can be prepared around the installation surface, cable access and local installer preference.
Can PridLED match destination voltage?
Yes. Destination voltage is confirmed before the power-supply and LED layout are finalized. Power-supply placement and service access should be included in the drawing review.
Can I approve one set before a rollout?
Yes. A one-set prototype can establish construction, finish, illumination and packing references before repeat production.
RELATED TECHNICAL GUIDES
Related Technical Guides
Use only the guides that directly support this page’s product, capability or application decisions.
Front-Lit vs Halo-Lit Channel Letters
Compare face illumination, reflected halo light and the construction interfaces behind each effect.
Relevant context: lighting effect, wall finish and close- or long-distance viewing
Raceway vs Flush-Mount Channel Letters
Review wall penetrations, wiring access, serviceability and installer handover for the two common mounting approaches.
Relevant context: raceway, direct mount and landlord or fascia constraints
Channel Letter Mounting Guide
Coordinate studs, rails, raceways, backer panels and halo stand-offs before fabrication.
Relevant context: installer drawings, wall structure and cable exits
Artwork & File Preparation Guide
Prepare vector artwork, dimensions, colors, site photos and RFQ references for drawing review.
Relevant context: logo geometry, approved dimensions and finish references
LED Sign Voltage & Power Planning
Confirm destination voltage, low-voltage system, driver access and cable routes.
Relevant context: LED layout, driver location and local electrical handover
START YOUR CHANNEL LETTER PROJECT
Review Your Channel Letter Requirements Before Production
Share your artwork, letter dimensions, lighting effect, mounting method, voltage and quantity. We’ll review the construction and installation interfaces before quotation.
